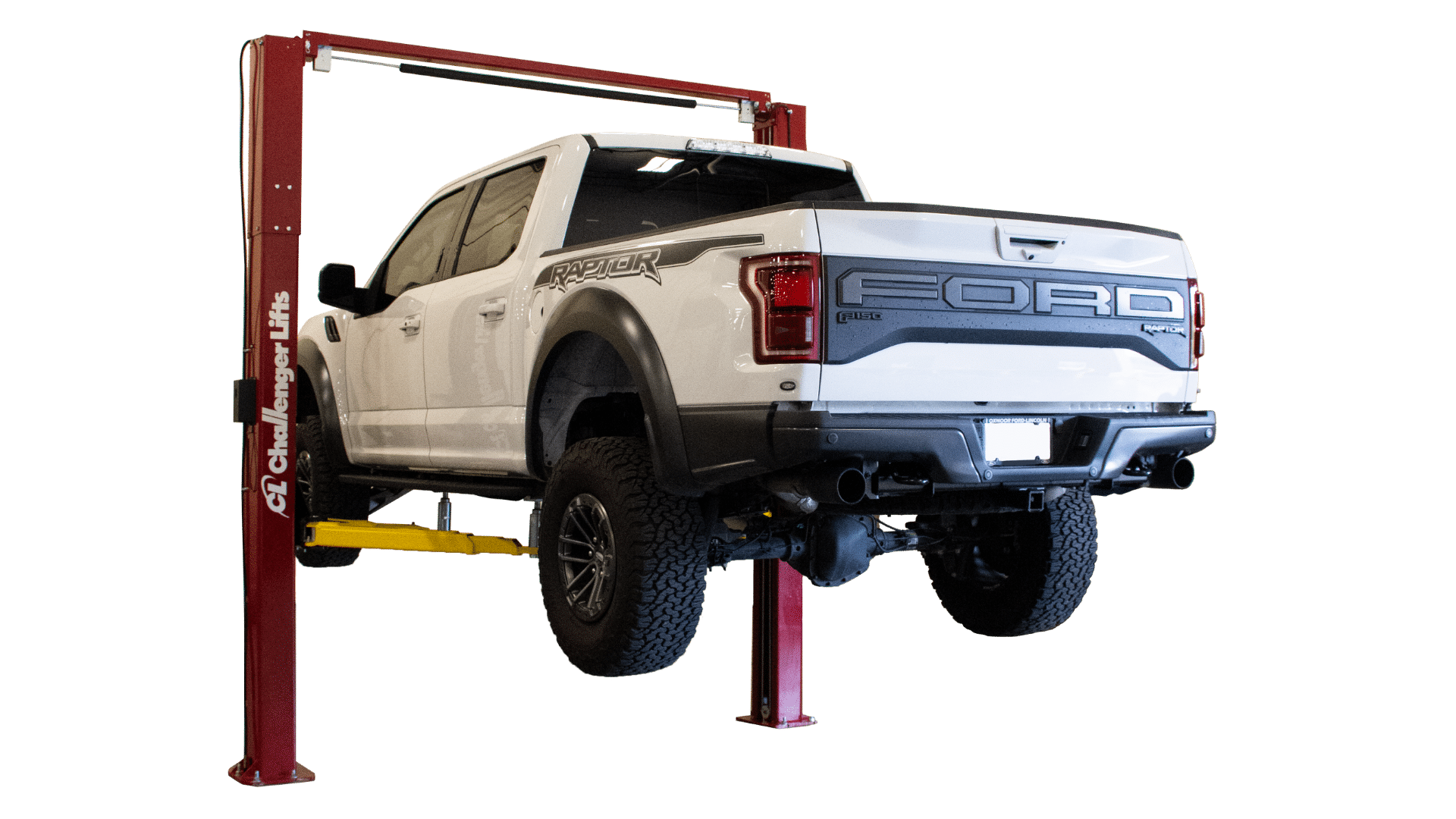

Challenger VLE10 Two Post Lift – 10,000 lb Capacity
Part # VLE10
The Challenger VLE10 combines innovative design and compact versatility in a heavy-duty frame. With 3-stage Versymmetric® front arms and 2-stage rear arms, this lift allows both symmetric and asymmetric lifting in a single bay — perfect for maximizing your shop’s efficiency without compromising performance.
Description
Key Features:
10,000 lb. lift capacity – Ideal for cars, SUVs, and light trucks
3-Stage Versymmetric® Front Arms & 2-Stage Rear Arms – Supports both asymmetric and symmetric lifting
Compact design – 11.875′ height fits in service bays with 12′ ceilings
Double telescoping screw pads – Equipped with durable rubber foot pads
Padded overhead shut-off system – Prevents vehicle damage from over-extension
Pulley-less, jacketed single-point lock release – Smooth, low-maintenance operation
Dual rubber door guards – Protect vehicle doors from accidental contact
Plated arm restraints and pins – Resist rust and increase component life
Premium powder coat finish – Ensures long-term durability and a professional look
Specifications:
Lifting capacity: 10,000 lbs (4,536 kg)
Ceiling height requirement (standard): 11’10” (fits most 12’ bays)
Drive-through clearance: Approx. 89.5″ (2,273 mm)
Overall height: 143.5″ (3,644 mm)
Overall width (standard): 135.375″ (3,437 mm)
Rise height: 72″ (1,829 mm)
Arm reach (min–max):
Front: 21.5″–39.625″ (546–1,006 mm)
Rear: 37″–57″ (940–1,448 mm)
Screw pad height (min): 4.5″ (114 mm)
Max arm pad height with adapters: 6.75″ (171 mm)
Perfect for: General automotive repair shops, quick service bays, and any facility needing versatility in a compact lift.
