Challenger CL12A Two Post Lift – 12,000 lb Capacity
Part # CL12A
Built for heavier vehicles and expanded service capabilities, the Challenger CL12A offers a robust 12,000 lb. lift capacity and advanced arm configuration. With 3-stage front and rear arms, it’s engineered to handle everything from standard vehicles to wide electric models — all while maximizing bay flexibility and safety.
Description
Key Features:
12,000 lb. lift capacity – Ideal for trucks, vans, and EVs

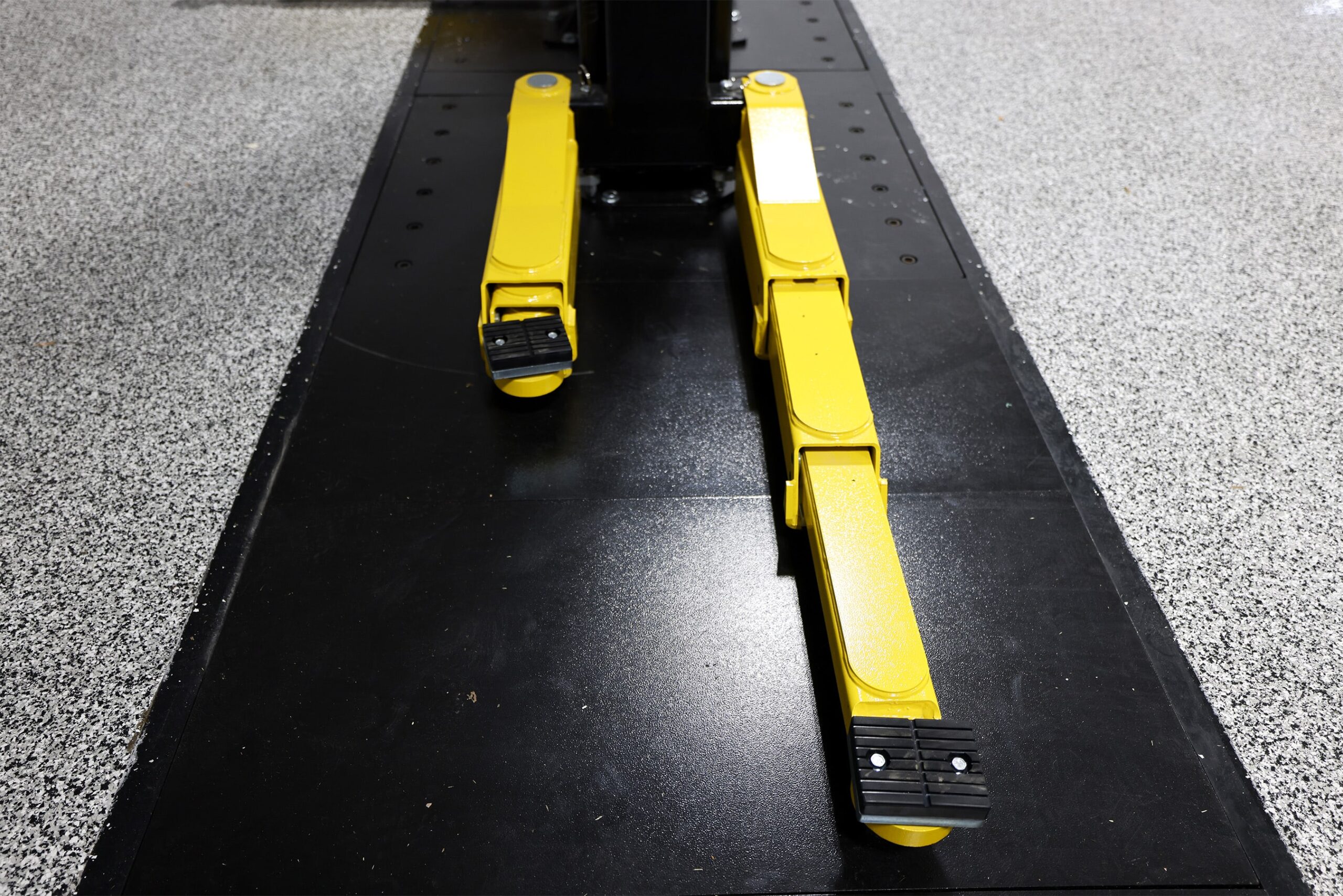

3-stage front & rear arms – Greater reach for varied vehicle lift points
Adjustable width – Fits bay setups from 11′ 10″ to 12′ 10″
EV-ready design – Accommodates wider vehicles when paired with TFPK footpad kit
Column extension options – Add 1′ or 2′ extensions for higher ceiling clearance
Low-ceiling model available – Fits spaces with 11′ 11″ height clearance
Versatile installation – Configure to fit your shop’s unique layout
Heavy-duty construction – Built for long-lasting performance in high-volume environments
Optional accessories available – Customize to meet your exact needs
Specifications:
Lifting capacity: 12,000 lbs (5,443 kg)
Ceiling height (standard): 12′ (3,658 mm)
Low-ceiling version height: 11′11″ (3,632 mm)
Optional column extensions: 1′ or 2′ (to accommodate taller vehicles)
Adjustable overall width: 11′10″ or 12′10″ (3,607 or 3,911 mm)
Rise height: 78″ (1,981 mm)
Arm reach (min–max):
Front: Approx. 22.5″–51″ (572–1,295 mm)
Rear: Approx. 34″–60″ (864–1,524 mm)
Screw pad height (min): 4.25″ (108 mm)
Max pad height with adapters: Up to 6.75″ (171 mm)
Perfect for: Shops servicing light- to medium-duty trucks, electric vehicles, and customers looking for maximum arm reach and adaptability.
